This is from a series of articles reprinted from the journal ISA Transactions. All ISA Transactions articles are free to ISA members, or can be purchased from Elsevier Press.

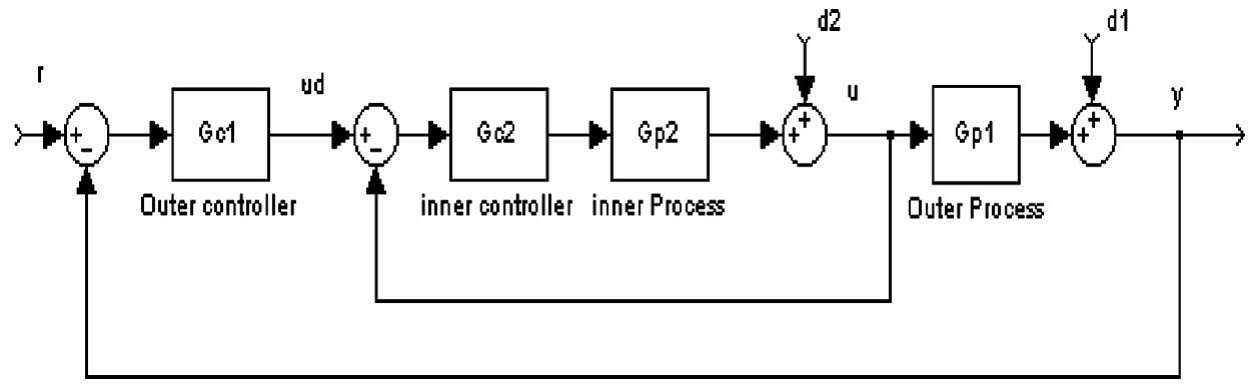

Fig. 1. Configuration of the cascade control system.
Abstract: In this paper, a novel auto-tuning method for a cascade control system is proposed. By employing a simple relay feedback test, both inner and outer loop model parameters can be simultaneously identified. Consequently, well-established proportional-integral-derivative (PID) tuning rules can be applied to tune both loops. Compared with existing methods, the new method is simpler and yet more effective. It can be directly integrated into commercially available industrial auto-tuning systems. Some examples are given to illustrate the effectiveness and robustness of the proposed method.
Free Bonus: To read the full article on auto-tuning of cascade control systems, click here.
