Key Factors of Wireless Real-Time Networks: From Dependability to Timeliness

There are moments when the occurrence of errors could not imply the observation of any kind of disturbance, which may be capable of disrupting the operation of a computer-based system. If we extrapolate such a concern to the communication network itself, we realize how important it is to deal with network errors, preventing the propagation of any type of issue to the applications and protocols executed on top of the established communication infrastructure [1-4]. From the wired realm [1-2] we have acquired fundamental lessons, emphasizing the importance of securing dependability and timeliness properties during the network operation. The requirement of holding such properties in the domain of wireless communications is not different [3]. It is, indeed, essential to offer resilient real-time wireless communications in the presence of different sources of disturbances, from communication medium impairments to node mobility [5].

We all could agree that dependability and timeliness are key factors for any kind of wireless real-time network, which can be established on top of any suitable standard such as the general-purpose IEEE 802.15.4 [6], or ISA100.11a [7] for industrial automation. However, the question is: How could we secure such fundamental factors? In this article, we visit the roots of the network operation for securing its provided communication service as a dependable, safe, and timely asset for industrial automation. Instead of focusing on the results we need to deliver, we address aspects related to dependability and timeliness properties of the network operation, establishing a solid foundation to build resilient real-time wireless communications, which imposes little or no modification to the current networking standards.

A Dependable and Timely Wireless Network Service

There is no single moment when safety-critical environments do not refer to the fundamental requirement of securing a safe operation of the entire ecosystem. The communication network is part of it, and its operation must be as safe as the other parts of the system.

The Medium Access Control (MAC) layer is the rightful candidate to assume the role of coordinator for any safety-critical communication. However, the unreliable nature observed in the design of the MAC layer does not allow it to get into such a position. Delegating such a task to higher layer protocols and applications does not seem to be a suitable strategy, as such higher entities cannot observe, and account the specific disturbances, and its associated drawbacks occurred at such a low-level [3].

For transforming the MAC layer into a dependable, timely, and resilient entity, with the ability of monitoring and controlling any temporal aspect of communications, ensuring the safety of the entire system in between, we need the establishment of a trustworthy network service on top of its exposed service interface [8]. The premise to rely on such a service is supported by the following statement:

If no real-time guarantees can be offered within communications at one hop of distance, no real-time guarantees can be offered within multiple-hop communications at all.

To be considered trustworthy, the network service must be dependable. It must be capable of dealing with any type of issue happening during the communication process of two or more entities (e.g., applications), from the loss of data to the temporary disruption of network communications, dubbed network inaccessibility [9]. The network service also must not offer any threat to the safety of the system, implying the requirement to deliver communications just on the right time, i.e., a dependable and timely operation. Such trustworthy network service results from the use of a resilient real-time wireless architecture, such as the one proposed in reference [8].

The Wi-STARK Architecture

Wi-STARK is a layered and component-based architecture that aims to establish the required foundation for supporting (hard) real-time communication services on the wireless realm [8]. Wi-STARK has been designed to fit in the lowest levels of the networking protocol stack, based on results obtained from a case study of the IEEE 802.15.4 standard.

The requirement of addressing the issue of temporary network partitions has been highlighted by the characterization of network inaccessibility in IEEE 802.15.4, which has been presented in reference [9]. Due to the prohibitive durations obtained, which are illustrated in Figure 1, strategies to deal with the presence of network inaccessibility in the wireless realm have been designed and applied, reducing its negative charge significantly, as illustrated in Figure 2.

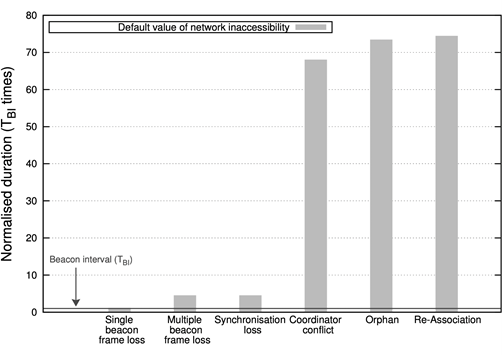

 Jef Fig 1

Figure 1: Characterization of Network Inaccessibility in IEEE 802.15.4 Wireless Networks [10]

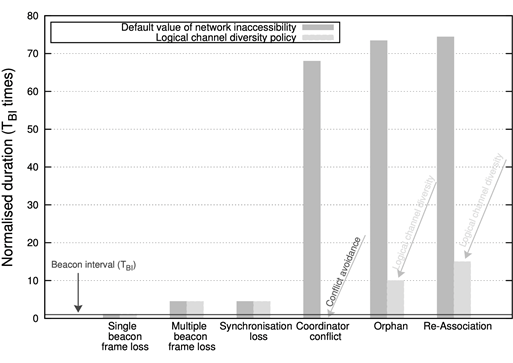

 Jef Fig 2

Figure 2: Reducing Network Inaccessibility in IEEE 802.15.4 Wireless Networks [10]

The Wi-STARK architecture has an intrinsic design that can be incorporated in Commercially Off-The-Shelf (COTS) components. A visual representation of the Wi-STARK architecture is illustrated in Figure 3; it builds up on the RF transceiver exposed interface, which integrates basicMAC and the Physical Layer. In Figure 3, the two distinguished but interdependent internal layers are highlighted: The Mediator Layer and the Channel Layer.

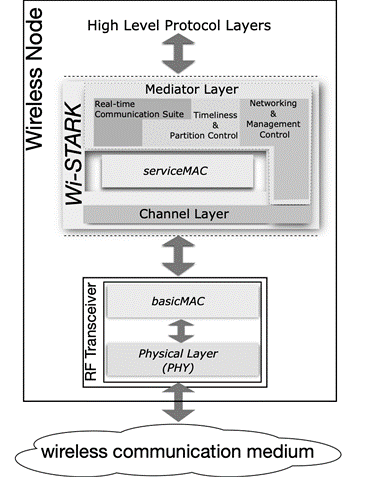

Jef Fig 3Figure 3: The Wi-STARK Architecture

The Mediator Layer is a real-time communication service layer that enables high level entities to transmit time-sensitive data through the network. The Channel Layer is a control and monitoring layer, which controls and monitors the way communication channel(s) and RF transceiver(s) are utilized for real-time communication between wireless nodes. The Wi-STARK architecture design provides two fundamental guarantees to the high-level protocols and applications:

  1. Time-bounded communications
  2. Resilience against failures on the wireless communication medium

In terms of numbers and evaluation of worst-case scenarios, any guarantee offered depends directly on the technology in use. Because of such dependency, all guarantees offered by the Wi-STARK architecture are described in an abstract form, requiring a direct mapping with technology to obtain concrete numbers regarding dependability, timeliness, and safety properties of the network operation. In other words, Wi-STARK offers the capability to adapt, with little or no extension, to the characteristics of the wireless network standard in use (e.g., IEEE 802.15.4, ISA100.11a, or WirelessHART), where for each one of them we may have more strict or relaxed guarantees provided.



If you are interested in going into the technical details of our contributions, please see the following complementary white paper.
